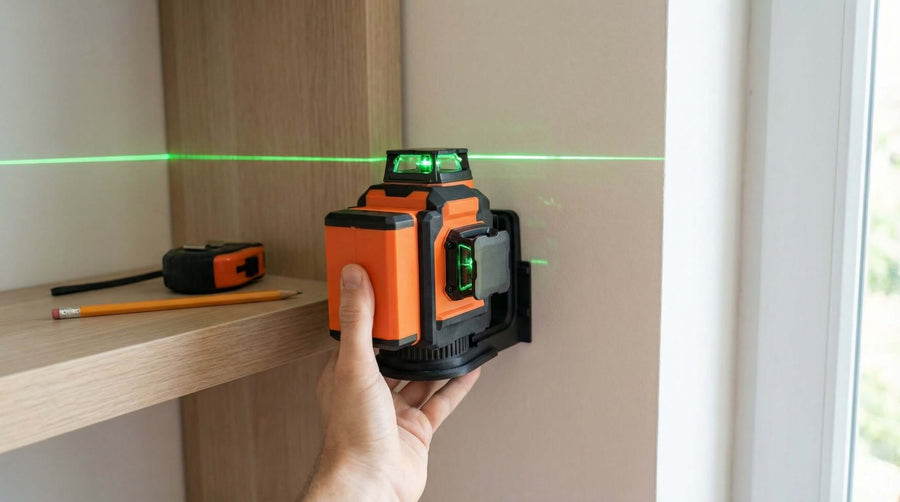

How to Use a 3D Self-Leveling Laser Level for Accurate Layout Work (Step-by-Step Guide)
When your measurements look fine—but everything still ends up slightly off
You start a project thinking it’s simple: mark a line, align a surface, continue building.
But halfway through, you notice something annoying—tiles don’t line up perfectly, shelves drift slightly, and ceilings feel uneven even though every step “looked correct.”
That’s usually not a skill problem. It’s a reference problem.
A tool like the Takamine Tech3x360 Self-Leveling Laser Level TT12LS fixes that by giving you a stable spatial grid instead of isolated lines.
Understanding how to use a 3D laser level for construction layout is what separates trial-and-error work from consistent accuracy.
Step 1: Set up a stable reference point
Start by placing the laser level on a stable surface or tripod in the center of your working area.
Make sure the surface is as level as possible, even though the device can self-correct small tilts.
Once powered on, the system automatically levels itself in a few seconds.
At this point, you’re not marking anything yet—you’re establishing the “reference reality” of the entire room.
Step 2: Let the self-leveling system stabilize
After activation, the device adjusts itself within a small tilt range.
Do not interfere during this phase.
When the lines stop shifting, the projection becomes your fixed spatial grid.
This is where many users rush—but waiting those few seconds is what ensures consistent alignment across all surfaces.
Step 3: Use the 360° projection to map the space
Once stabilized, the 12-line 3D projection surrounds the entire workspace.
Now you can begin marking:
H3: Horizontal alignment (floor reference)
Use the horizontal lines to mark consistent floor levels or tile starting points across the room.
H3: Vertical alignment (wall structure)
Vertical beams help define wall edges, cabinet positions, and installation boundaries.
H3: Cross-line intersections (precision points)
Where lines intersect, you get exact reference points for fixtures, sockets, or mounting hardware.
Instead of working section by section, you now work inside one continuous grid.
Step 4: Move through the room without resetting
A major advantage of a 3D system is that you don’t need to constantly reposition the tool.
As you move from wall to wall:
• the reference remains unchanged
• alignment stays consistent
• you avoid cumulative measurement errors
This is especially useful in larger rooms where traditional tools require repeated recalibration.
Step 5: Extend range when working in larger spaces
For longer distances, switch to extended range mode (up to 60 meters).
This allows you to maintain visibility and alignment consistency in:
• large open-plan rooms
• corridors
• renovation sites with multiple zones
The goal here is not just visibility—it’s continuity of reference.
Tips, tricks & common mistakes
Avoid unstable surfaces
Even though the device self-levels, placing it on shaky ground introduces unnecessary correction cycles.
Don’t ignore line brightness conditions
Green laser visibility is strong, but extremely bright sunlight can still reduce clarity. Adjust positioning if needed.
Work from the grid, not from memory
A common mistake is reverting to tape measurements instead of using the projected lines as the main reference system.
Start from the longest alignment first
Always begin with the most visible, longest line in the room—it sets the structural baseline.
Maintenance and long-term use
Keeping the tool accurate over time is simple:
• store it in its protective case
• avoid heavy dust exposure despite IP54 protection
• recharge Li-ion battery before full depletion
• check lens cleanliness regularly
Proper handling ensures consistent accuracy and stable projection over long-term use.
Real-life usage scenarios
Bathroom renovation
Use full-room projection to align tile rows, mirror height, and ceiling fixtures simultaneously.
Kitchen installation
Maintain consistent cabinet height and spacing across multiple walls without repeated measuring.
Ceiling work
Keep lighting and panel installations aligned across the entire ceiling plane.
DIY home projects
Even simple shelving or wall decoration becomes easier when every reference point is already visible.
Conclusion: how correct usage changes the entire workflow
Using a 3D laser level properly is less about the tool itself and more about how you structure your work.
Once the room becomes a visible grid instead of separate measurements, alignment stops being guesswork.
You move faster, correct less, and maintain consistency across the entire project.
For anyone working on renovation or construction where precision matters, a self-leveling 3D laser level for construction layout tasks becomes a core part of the workflow—not just a measuring device.
